Van der Graaf Drum Motor Series

Stator Van der Graaf holds with its " GV" drummotors nationally and internationally a leading position in the market. " GV" drummotors find their way into applications in the mining, food industry, agriculture, fish processing, packing machines, bakery machines, automotive industry, Aggregate bulk handling, as well as X-ray machines and luggage conveyors in many of the worlds airports. We are always finding new applications for the "GV" drummotor.

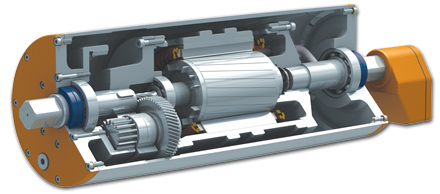

Van der Graaf's customers are mainly builders of conveyor systems. The heart of these conveyor systems is the fully sealed Van der Graaf drummotor. The drummotor has no external components like pulleys or sprockets which saves space. For this reason they are a compact and durable alternative for a conventional conveyor drive. Designed to keep conveyor systems running even under the most extreme conditions and in a lot of different applications.

The Van der Graaf comes in different types, below show the different types of Motor series available.



Type

(mm)

P (kW)

v (m/s)

TM 100B25 100 0.05 - 0.37 0.007 - 3.6
TM 113B25 113 0.04 - 0.55 0.008 - 4.4
TM 127.25 127 0.1 - 1.1 0.008 - 2.6
TM 138.25 138 0.1 - 1.1 0.009 - 2.8
TM 160.25 160 0.1 - 0.75 0.13 - 3.3
TM 160.30 160 0.10 - 2.2 0.06 - 4.0
TM 215.30 215 0.10 - 2.2 0.08 - 5.3
TM 215.40 215 0.37 - 5.5 0.12 - 4.7
TM 215B50
TM 273.40 273 0.37 - 5.5 0.16 - 5.0
TM 315.40 315 0.37 - 5.5 0.16 - 5.2
TM 315.50 315 1.1 - 11 0.16 - 4.4
TM 400.50 400 1.1 - 11 0.20 - 4.8
TM 400.60 400 1.5 - 22 0.20 - 4.2
TM 500.60 500 1.5 - 22 0.25 - 4.4
TM 500A75 500 11 - 30 0.80 - 3.2
TM 620A75 620 11 - 30 1 - 3.9
